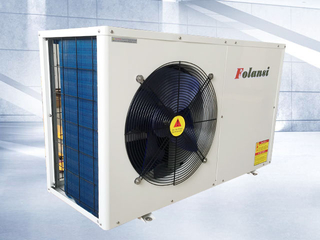

FA-03
folansi
FA-03
| Name:Air source heat pump/Air to water heat pump(60degree)heating+hot water | |||||
| Model | unit | FA-03 | FA-04 | ||
| Rated heating capacity | KW | 11 | 15 | ||
| BTU | 37543 | 51195 | |||
| Hot water supply | T/h | 0.23 | 0.3 | ||
| Average heating input power | KW | 2.34 | 3.4 | ||
| Rated heating input current | A | 11.2(220V) | 16(220V) | ||
| 6.5(380V) | 9(380V) | ||||
| Max outlet water temp | ℃ | 60℃ | |||
| COP | 4.62 | 4.4 | |||
| Power | V/Hz | 220-240V/380-415V/50HZ | |||
| Nosie | dB(A) | 50 | 50 | ||
| Dimension | Width | mm | 834 | 834 | |
| Deepth | mm | 460 | 460 | ||
| Height | mm | 1330 | 1330 | ||
| Unit weight | KG | 120 | 150 | ||
| Throttling type | Electronic expansion valves/thermal expansion valves | ||||
| Refrigerant | R410A;R32 | ||||
| Working air temp range | – 20℃～45℃ | ||||
| Compressor | Type | Copeland,.hitachi,panasonic | |||
| Security functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | ||||
| Air source heat exchanger | Type | Finned heat exchange | |||
| Qty | piece | 1 | |||
| Fan type | Axial big twist Angle fan | ||||
| Motor power | KW | 0.2 | 0.1 | ||
| Hot water side heat exchange | Type | Efficient tube to tube heat exchanger/tube in shell heat exchanger | |||
| Water flow | m3/H | 1.86 | 2.44 | ||
| Water pressure down | kPa | 27 | 29 | ||
| Pipe size | Inch | 1 | |||
| Water side max working pressure | kPa | 1000 | |||
| Remarks:the test conditions of above parameter:dry bulb temp is 20℃.wet buld temp is 17℃.inlet water temp is 15℃.outlet water temp is 60℃ | |||||
