FAD-06S
folansi
FAD-06S

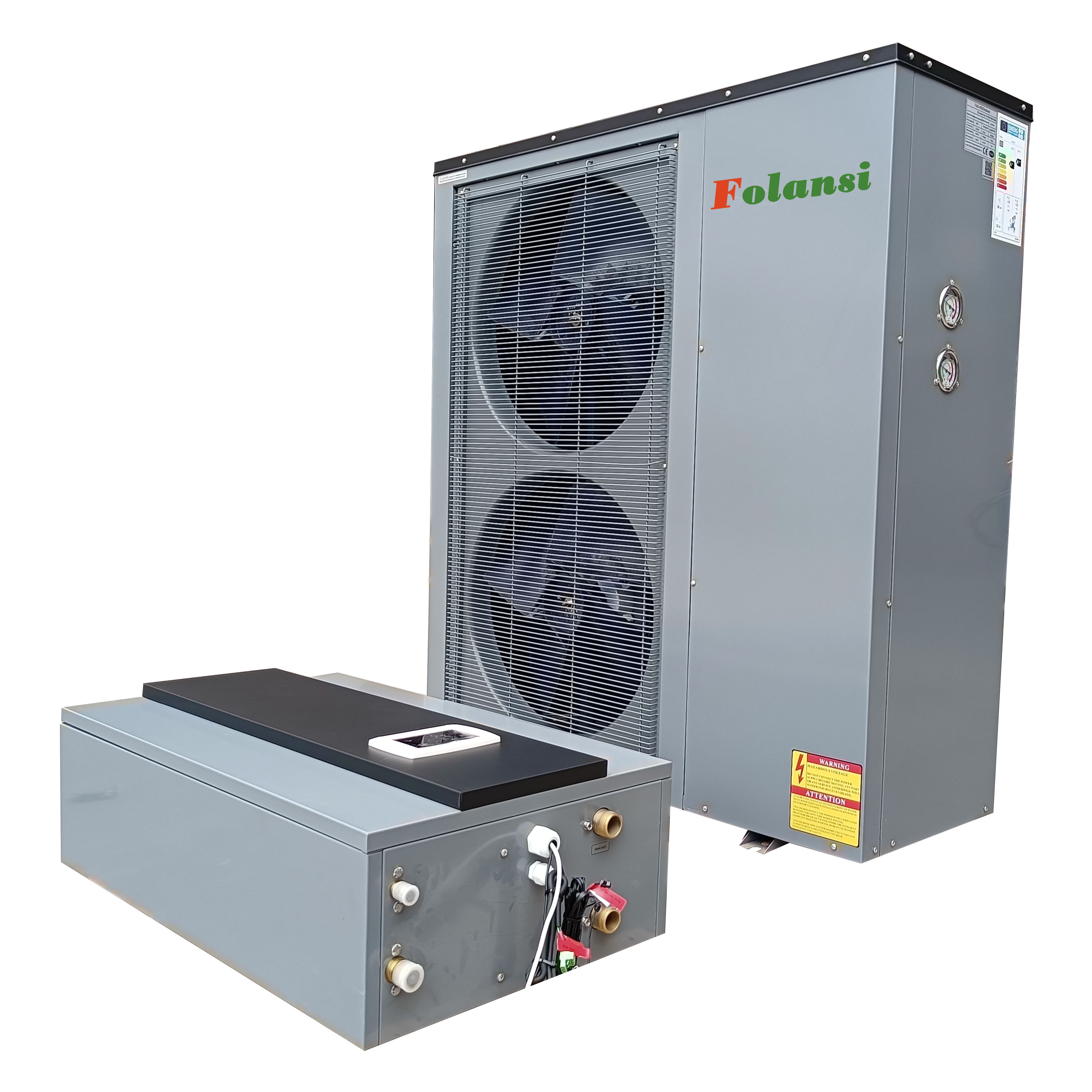

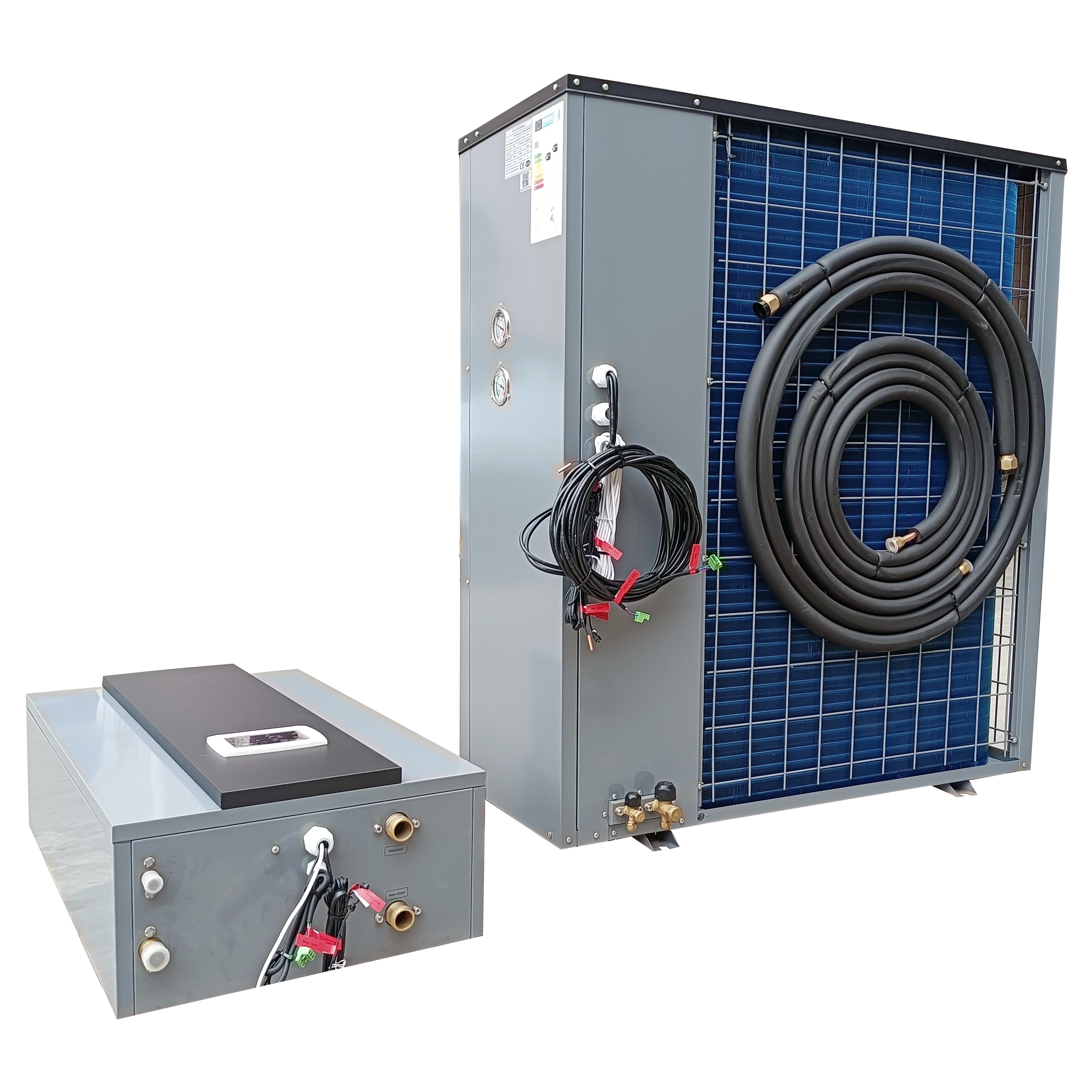

| Split DC Inverter Air to Water heat pump | ||||||||
| Model | FAD-05S | FAD-06S | FAD-10S | |||||
| Heating capacity (A7/W35) | kW | 18.0 | 22.0 | 30.0 | ||||
| Heating power input | kW | 3.58 | 4.03 | 5.66 | ||||
| COP (A7/W35) | 5.03 | 5.46 | 5.30 | |||||
| Heating capacity (A7/W55) | kW | 14.1 | 16.0 | 22.9 | ||||
| Heating power input | kW | 4.98 | 5.54 | 8.12 | ||||
| COP (A7/W55) | 2.83 | 2.89 | 2.82 | |||||
| Heating capacity (A2/W35) | kW | 14.9 | 16.1 | 24 | ||||
| Heating power input | kW | 3.46 | 3.89 | 5.58 | ||||
| COP (A2/W35) | ||||||||
| Heating capacity (A2/W55) | kW | 13.1 | 15.2 | 21.5 | ||||
| Heating power input | kW | 4.78 | 5.48 | 7.76 | ||||
| COP (A2/W55) | 2.74 | 2.77 | 2.77 | |||||
| Heating capacity (A-7/W35) | kW | 12.9 | 14.4 | 19.4 | ||||
| Heating power input (A- | kW | 3.69 | 4.03 | 5.35 | ||||
| COP (A-7/W35) | 3.50 | 3.57 | 3.63 | |||||
| Heating capacity (A-7/W55) | kW | 11.5 | 13.4 | 16.2 | ||||
| Heating power input (A- | kW | 5.62 | 6.44 | 7.82 | ||||
| COP (A-7/W55) | 2.05 | 2.08 | 2.07 | |||||
| Heating capacity (A-15/W35) | kW | 11.5 | 12.6 | 15.8 | ||||
| Heating power input (A- | kW | 4.04 | 4.43 | 5.49 | ||||
| COP (A-15/W35) | 2.85 | 2.84 | 2.88 | |||||
| COP (A-15/W36) | 1.42 | 1.56 | 1.91 | |||||
| Heating power input (A- | kW | 5.21 | 6.11 | 8.41 | ||||
| COP (A-15/W55) | 0.27 | 0.25 | 0.23 | |||||
| Cooling capacity (A35/W7) | kW | 13.7 | 15.2 | 22.4 | ||||
| Cooling power input | kW | 4.19 | 4.53 | 6.71 | ||||
| EER (A35/W7) | 3.27 | 3.36 | 3.34 | |||||
| Max. water temp. | ℃ | 60 | ||||||
| Rated water temp. | ℃ | 55 | ||||||
| water flow | m3/h | 2.60 | 3.10 | 3.40 | ||||
| pressure drop | Kpa | 28 | 30 | 31 | ||||
| Net weight | kg | 126 | 168 | 190 | ||||
| Gross weight | kg | 144 | 186 | 210 | ||||
| Noise | dB(A) | 58 | 58 | |||||
| Pipe connection | mm | 1 inch | 1-1/4 inch | |||||
| Power supply | 380V/3PH/50Hz | |||||||
| Net size | mm | 1110*450*1250 | 1110*450*1250 | 1300*480*1400 | ||||
| Package size | mm | 1200*520*1390 | 1200*520*1390 | 1390*550*1540 | ||||
| Net size | mm | 500*255*800 | 500*255*800 | |||||
| Package size | mm | 550*380*850 | 550*380*850 | |||||
| Compressor | brand | Mitsubishi | ||||||
| quantity | 1 | |||||||
| Condenser | plate heat exchanger | |||||||
| Evaporator | Louverd&hydrophilic fin-tubes | |||||||
| 4-way valve | Yes | |||||||
| Flow switch | Yes | |||||||
| Circulation pump | Built-in energy clasee A water pump | |||||||
| Expansion valve | Electionic expansion valve | |||||||
| DC Fan motor | 80W*2 | 80W*2 | 170W*2 | |||||
| High pressure switch | 4.2/3.6MPa | |||||||
| Low pressure switch | 0.02/0.15MPa | |||||||
| Working mode | cooling, heating, hot water, cooling+hot water,heating+hot water | |||||||
| Refrigerant | R32, R410A | |||||||
Remark
1、Working temp.：-25℃- 43℃
2、Test condition：
* Ambient temp.：7℃/6℃，inlet/ outlet water temp.：30℃/35℃；
** Ambient temp.：-2℃/-1℃，inlet/ outlet water temp.：30℃/35℃；
*** Ambient temp.：-15℃，inlet/ outlet water temp.：30℃/35℃；
