FAD-03S
folansi
FAD-03S

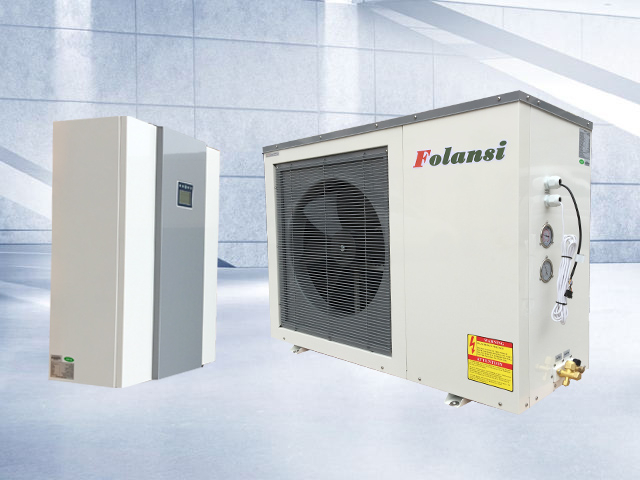

| DC Inverter Air to Water heat pum (split-type) | |||
| Model | FAD-03S | ||
| Technical parameters | Heating capacity* | KW | 9 |
| Heating power input* | KW | 2.02 | |
| Heating capacity** | KW | 7.4 | |
| Heating power input** | KW | 2.07 | |
| Heating capacity*** | KW | 6.5 | |
| Heating power | KW | 2.22 | |
| COP* | 4.46 | ||
| COP** | 3.58 | ||
| COP*** | 2.9 | ||
| Cooling capacity | KW | 7.9 | |
| Cooling power input | KW | 2.49 | |
| EER | 3.17 | ||
| Max. water temp. | ℃ | 60 | |
| Rated water temp. | ℃ | 55 | |
| Water flow | m3/h | 1.70 | |
| Pressure drop | Kpa | 22 | |
| Net weight | kg | 90 | |
| Gross weight | kg | 105 | |
| Noise | dB(A) | 52 | |
| Pipe connection | mm | DN25 | |
| Power supply | 220V/1PH/50Hz | ||
| Net size | mm | 1110*450*850 | |
| Package size | mm | 1200*520*990 | |
| Standard features | Compressor | Brand | Mitsubishi |
| Quantity | 1 | ||
| Condenser | plate heat exchanger | ||
| 4-way valve | Dunan | ||
| Flow switch | Yes | ||
| Circulation pump | GreenPro high efficiency | ||
| Expansion valve | Sanhua or Dunan | ||
| Fan motor | 90W | ||
| Controller | LCD | ||
| High pressure switch | 4.2/3.6MPa | ||
| StandardFeatures Low pressure switch | 0.02/0.15MPa | ||
| Working mode | Cooling, heating, hot water, cooling+hot water, heating+hot water | ||
| Refrigerant | R410a | ||
Remark
1、Working temp.：-25℃- 43℃
2、Test condition：
* Ambient temp.：7℃/6℃，inlet/ outlet water temp.：30℃/35℃；
** Ambient temp.：-2℃/-1℃，inlet/ outlet water temp.：30℃/35℃；
*** Ambient temp.：-15℃，inlet/ outlet water temp.：30℃/35℃；
