| Air source heat pump (Heating and cooling) | ||||||
| Model | heatpump | FAC-10 | FAC-12 | |||
| Unit functions | Rated heating | Heating capacity | kW | 29.75 | 36.17 | |
| Btu/h | 101536 | 123447 | ||||
| Rated power | kW | 8.97 | 10.69 | |||
| Rated current | A | 17 | 20.3 | |||
| Rated cooling | Cooling capacity | kW | 24.19 | 29.41 | ||
| Btu/h | 82560 | 100375 | ||||
| Rated power | kW | 9.15 | 10.91 | |||
| Rated current | A | 17.4 | 20.7 | |||
| Max ruuning current | A | 27.8 | 33.2 | |||
| Power | V/Ph/Hz | 380V~415/3N/50Hz | ||||
| Noise | dB(A) | 58 | 60 | |||

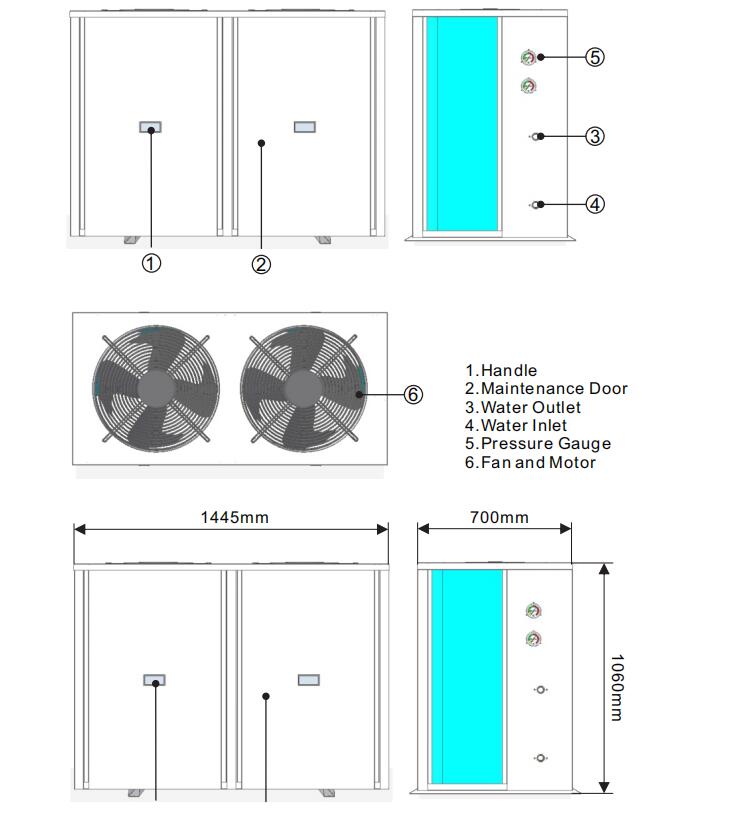

| Size | L(A) | mm | 1450 | 1450 | ||
| w(B) | mm | 780 | 780 | |||
| H(C) | mm | 1050 | 1253 | |||
| Weight | kg | 280 | 350 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | |||
| Operation range | ℃ | — 20℃～45℃ | ||||
| Operation panel | Type | LCD | ||||
| Main functions | Operating mode,temperature,operating condition, timing | |||||
| Throttling | Electronic expansion valves | |||||
| The outlet temp | ℃ | 55℃ | ||||
| Refrigerate | Type | R410A;R32 | ||||
| Compressor | Type | Copeland, panasonic | ||||
| Air side heat exchange | Type | Finned heat exchange | ||||
| Qty | pc | 2 | 2 | |||
| Fan type | Type | Axial big twist angle fan | ||||
| Motor power | kw | 0.6 | 0.6 | |||
| Water side heat exchange | Type | Tube in shell heat exchanger/plate heat exchanger | ||||
| Water flow(summer) | m3/h | 4.16 | 5.06 | |||
| Water flow(winter) | m3/h | 5.12 | 6.22 | |||
| Water pressure down | kpa | 36 | 40 | |||
| Connection dimension | Inch | 1-1∕4 | 1-1∕2 | |||
| Water side max working pressure | KPA | 1000 | ||||
Rated cooling working conditions: air side return air temp 35℃, use side input water temp is 12℃, outlet water temp is 7℃
Rated heating working conditions: air side return air dry ball temp is 7℃, wet ball temp is 6℃, use side input water temp 40℃, outlet water temp is 45℃
