FA-12
folansi
FA-12

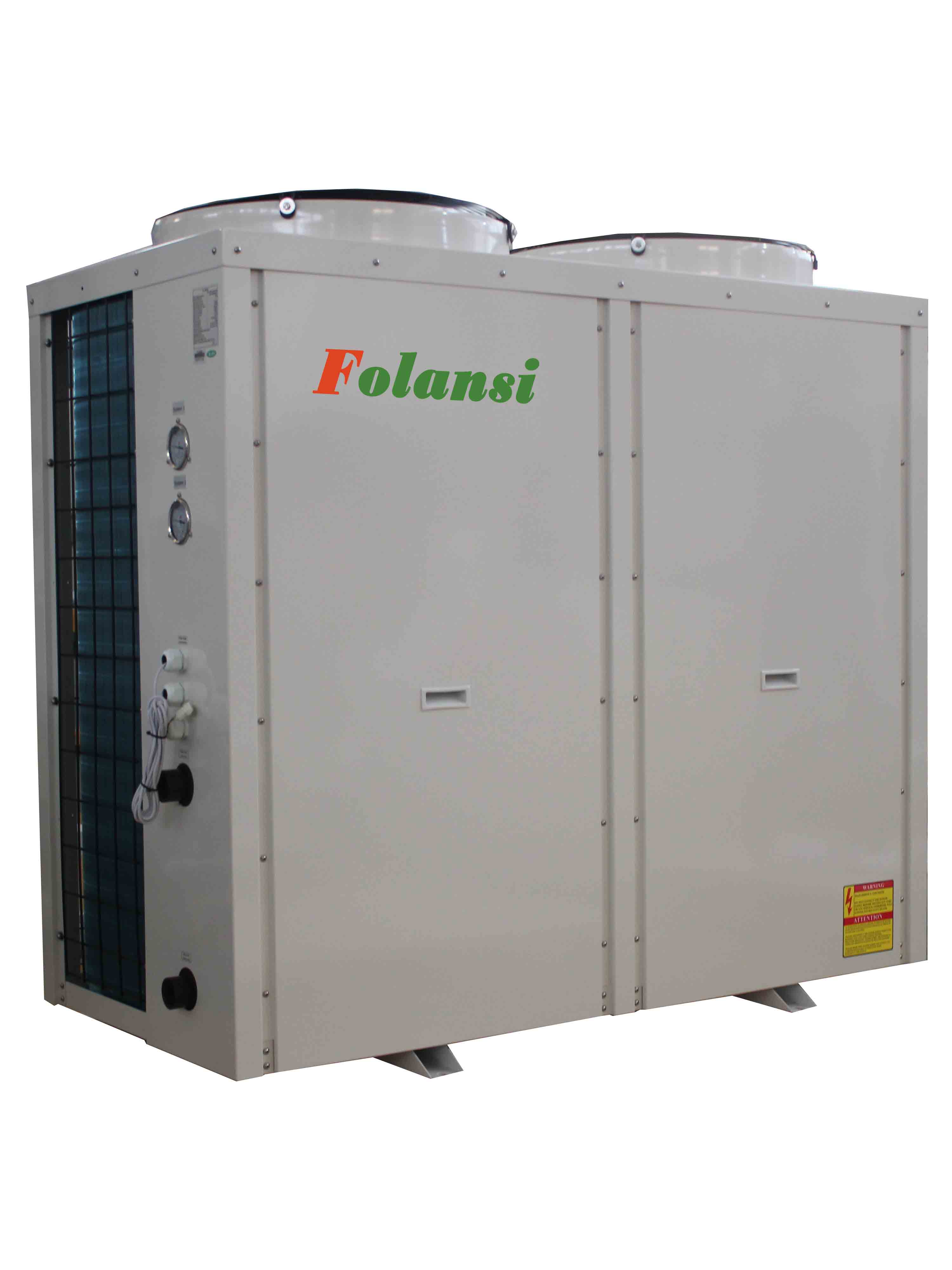

| Air source heat pump/Air to water heat pump(60degree)heating+hot water（ WIFI controller) | |||||
| Model | unit | FA-10 | FA-12 | ||
| Rated heating capacity | KW | 38 | 47 | ||
| BTU | 129693 | 160364 | |||
| Hot water supply | T/h | 0.85 | 1.3 | ||
| Average heating input power | KW | 8.2 | 10.2 | ||
| Rated heating input current | A | 13.34 | 14 | ||
| Max outlet water temp | ℃ | 60℃ | |||
| COP | 4.66 | 4.53 | |||
| Power | V/Hz | 380-415V/50HZ/60HZ | |||
| Nosie | dB(A) | 60 | 60 | ||
| Dimension | Width | mm | 1450 | 1450 | |
| Deepth | mm | 780 | 780 | ||
| Height | mm | 1050 | 1200 | ||
| Unit weight | KG | 300 | 320 | ||
| Throttling type | Electronic expansion valves | ||||
| Refrigerant | R410A， R32 | ||||
| Working air temp range | – 20℃～45℃ | ||||
| Compressor | Type | Scroll Copeland,.hitachi,panasonic | |||
| Security functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | ||||
| Air source heat exchanger | Type | Finned heat exchange | |||
| Qty | piece | 2 | |||
| Fan type | Axial big twist Angle fan | ||||
| Motor power | W | 250*2 | 250*2 | ||
| Hot water side heat exchange | Type | tube in shell heat exchanger | |||
| Water flow | m3/H | 6.53 | 7.94 | ||
| Water pressure down | kPa | 36 | 42 | ||
| Pipe size | Inch | 1-1/4. | |||
| Water side max working pressure | kPa | 1000 | |||
| Circulate water pump | No | ||||
| water flow switch | Yes | ||||
Remarks:the test conditions of above parameter:dry bulb temp is 20℃.wet buld temp is 17℃.inlet water temp is 15℃.outlet water temp is 60℃
