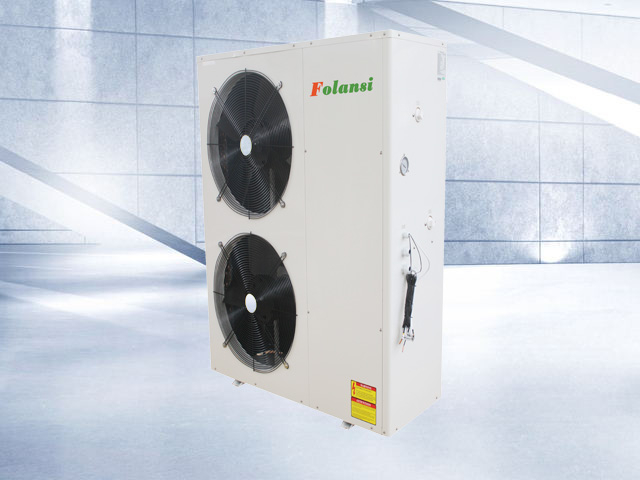

| Name:Air to water heat pump(60degree)heating+hot water | ||||
| Model | unit | FA-07 | ||
| Rated heating capacity | KW | 27.1 | ||
| BTU | 92491 | |||
| Hot water supply | T/h | 0.58 | ||
| Average heating input power | KW | 5.9 | ||
| Rated heating input current | A | 11 | ||
| Max outlet water temp | ℃ | 60℃ | ||
| COP | 4.6 | |||
| Power | V/Hz | 380-415V/50HZ | ||
| Nosie | dB(A) | 55 | ||

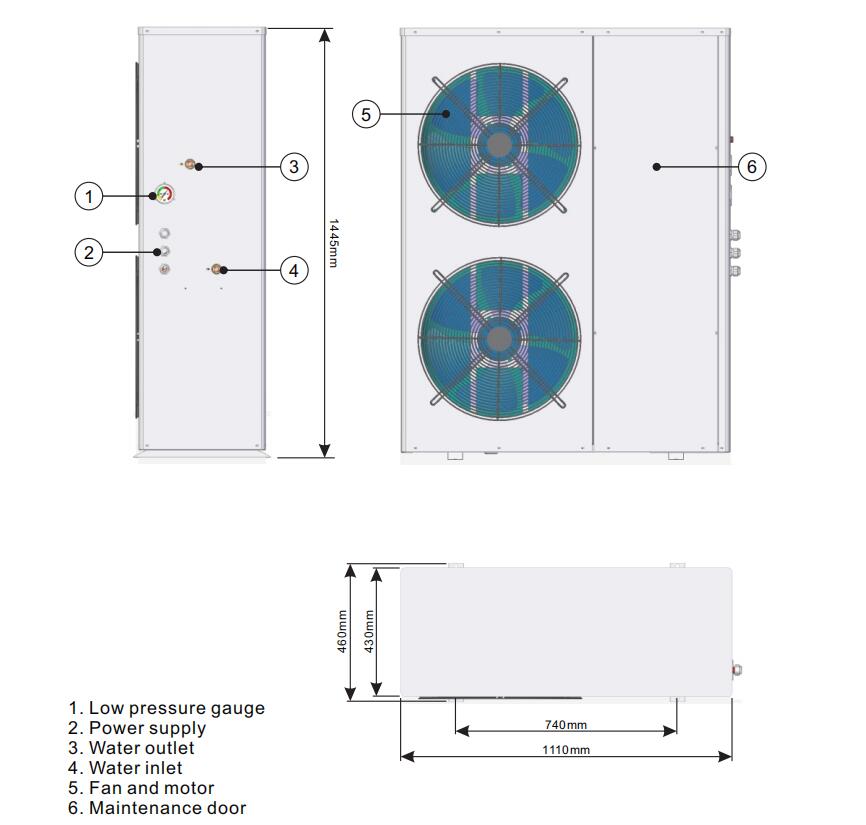

| Dimension | Width | mm | 1110 | |
| Deepth | mm | 460 | ||
| Height | mm | 1445 | ||
| Unit weight | KG | 225 | ||
| Throttling type | Electronic expansion valves/thermal expansion valves | |||
| Refrigerant | R410A | |||
| Working air temp range | – 20℃～45℃ | |||
| Compressor | Type | Copeland,.hitachi,panasonic | ||
| Security functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | |||
| Air source heat exchanger | Type | Finned heat exchange | ||
| Qty | piece | 1 | ||
| Fan type | Axial big twist Angle fan | |||
| Motor power | KW | 0.37 | ||
| Hot water side heat exchange | Type | Efficient tube to tube heat exchanger/tube in shell heat exchanger | ||
| Water flow | m3/H | 4.66 | ||
| Water pressure down | kPa | 34 | ||
| Pipe size | Inch | 1 | ||
| Water side max working pressure | kPa | 1000 | ||
| Remarks:the test conditions of above parameter:dry bulb temp is 20℃.wet buld temp is 17℃.inlet water temp is 15℃.outlet water temp is 60℃ | ||||
