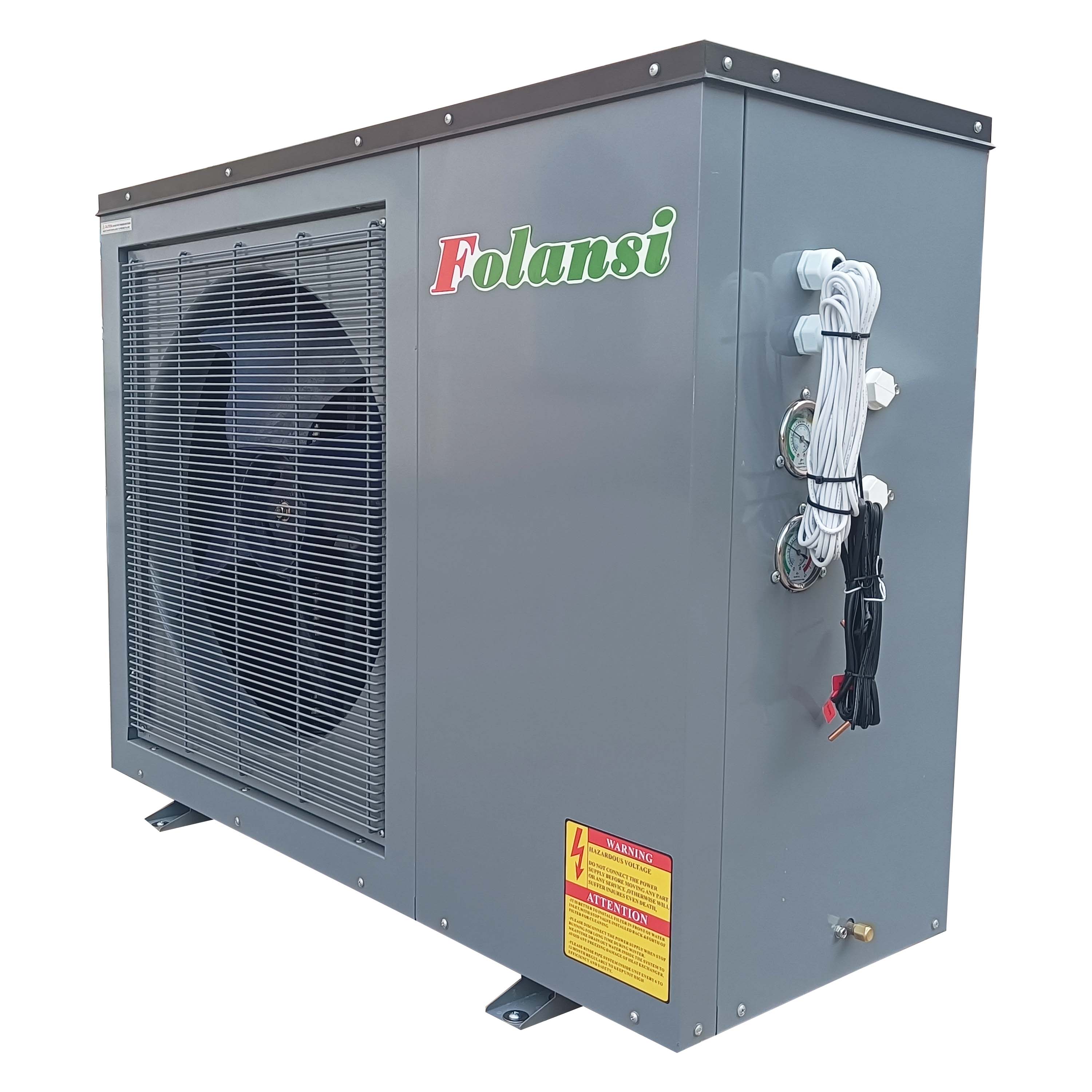

FAD-03EVI
folansi
FAD-03EVI
| EVI+DC inverter heat pump (Monoblock) | ||||
| Model | FAD-03-1 EVI | FAD-03EVI | ||
| Specification | Power supply | 220V/1PH/50Hz | ||
| Heating capacity (A7/W35) | kW | 3.9~11.4 | 5.1~13.2 | |
| Heating power input (A7/W35) | kW | 0.79~2.81 | 1.03~3.26 | |
| COP (A7/W35) | 4.41~4.94 | 4.45~4.95 | ||
| Heating capacity (A2/W35) | kW | 3.3~9.9 | 4.1~12.1 | |
| Heating power input (A2/W35) | kW | 0.82~2.61 | 1.01~3.17 | |
| COP (A2/W35) | 3.79~4.02 | 3.82~4.06 | ||
| Heating capacity (A-25/W45) | kW | 2.1~7.1 | 2.6~8.7 | |
| Heating power input (A-25/W45) | kW | 1.04~3.37 | 1.28~4.23 | |
| COP (A-25/W45) | 1.81~2.02 | 1.82~2.03 | ||
| Cooling capacity (A35/W15) | kW | 2.8~8.9 | 3.4~11.1 | |
| Cooling power input（A35/W15） | kW | 0.81~2.76 | 0.99~3.59 | |
| EER (A35/W15) | 2.86~3.46 | 2.81~3.43 | ||
| operating ambient temperature | .+43 ~ --30 | |||
| Max. water temp. | ℃ | 60 | ||
| Rated water temp. | ℃ | 55 | ||
| water flow | m3/h | 1.90 | 2.20 | |
| pressure drop | Kpa | 18 | 20 | |
| Pipe connection | mm | 1" | ||
| Net weight | kg | 72 | 79 | |
| Noise | dB(A) | 50 | 52 | |
| Net size | mm | 1110*450*850 | ||
| Package size | mm | 1200*520*990 | ||
| Standard Features | Compressor | brand | Panasonic | |
| quantity | 1 | |||
| Condenser | Plate heat exchanger | |||
| Evaporator | Louverd&hydrophilic fin-tubes | |||
| 4-way valve | Yes | |||
| Expansion valve | Electronic expansion valve | |||
| DC Fan motor | 170W DC motor | |||
| High pressure switch | 4.2-3.6MPa | |||
| Low pressure switch | 0.05-0.15MPa | |||
| Refrigerant | R32;R410A | R32;R410A | ||
| Flow switch | YES | YES | ||
| Circulation pump | YES | YES | ||
| Working mode | Heating, cooling , hot water , heating+ hot water, cooling+ hot water | |||
