FAC-04
folansi
FAC-04
| Air source heat pump (Heating and cooling) | ||||||
| Model | heatpump | FAC-03 | FAC-04 | |||
| Unit functions | Rated heating | Heating capacity | kW | 9.2 | 10.38 | |
| Btu/h | 31399 | 35427 | ||||
| Rated power | kW | 3.16 | 3.53 | |||
| Rated current | A | 12.9 | 14.5 | |||
| Rated cooling | Cooling capacity | kW | 7.48 | 8.44 | ||
| Btu/h | 25529 | 28805 | ||||
| Rated power | kW | 3.23 | 3.61 | |||
| Rated current | A | 13.2 | 14.8 | |||
| Max ruuning current | A | 19.2 | 21.5 | |||
| Power | V/Ph/Hz | 220V~240/1N/50Hz or 380V~415/3N/50Hz | ||||
| Noise | dB(A) | 50 | 50 | |||

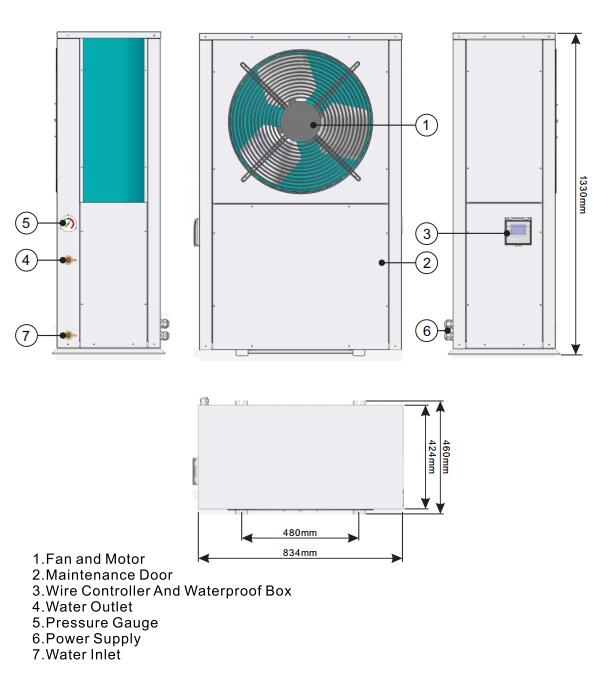

| Size | L(A) | mm | 834 | 834 | ||
| w(B) | mm | 460 | 460 | |||
| H(C) | mm | 1330 | 1330 | |||
| Weight | kg | 120 | 150 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | |||
| Operation range | ℃ | — 20℃～45℃ | ||||
| Operation panel | Type | LCD | ||||
| Main functions | Operating mode,temperature,operating condition, timing | |||||
| Throttling | Electronic expansion valves | |||||
| The outlet temp | ℃ | 55℃ | ||||
| Refrigerate | Type | R410A/R32 | ||||
| Compressor | Type | Copeland, panasonic | ||||
| Air side heat exchange | Type | Finned heat exchange | ||||
| Qty | pc | 1 | 1 | |||
| Fan type | Type | Axial big twist angle fan | ||||
| Motor power | kw | 0.1 | 0.18 | |||
| Water side heat exchange | Type | Tube in shell heat exchanger/plate heat exchanger | ||||
| Water flow(summer) | m3/h | 1.29 | 1.45 | |||
| Water flow(winter) | m3/h | 1.58 | 1.79 | |||
| Water pressure down | kpa | 27 | 29 | |||
| Connection dimension | Inch | 3∕4 | 1 | |||
| Water side max working pressure | KPA | 1000 | ||||
Rated cooling working conditions: air side return air temp 35℃, use side input water temp is 12℃, outlet water temp is 7℃
Rated heating working conditions: air side return air dry ball temp is 7℃, wet ball temp is 6℃, use side input water temp 40℃, outlet water temp is 45℃
