FAD-05
folansi
FAD-05

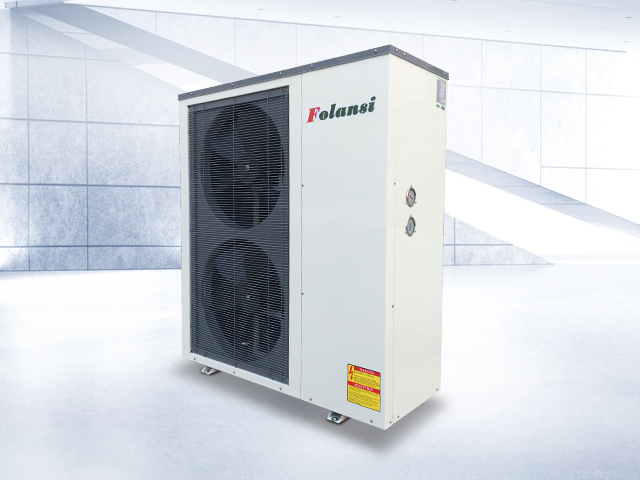

| DC inverter heat pump | |
| Model | FAD-05 |
| Power supply | 220~240V/1Ph/50Hz or 380~400V/3Ph/50Hz |
| Max. heating capacity (A7/W35) | 18kW |
| Min. heating capacity (A7/W35) | 6.5kW |
| Rated heating capacity (A7/W35) | 15.8 kW |
| COP | 2.9~4.5 |
| Max. cooling capacity (A35/W7) | 12.2kW |
| Min. cooling capacity (A35/W7) | 2.3kW |
| Rated Cooling capacity (A35/W7) | 14.5kW |
| EER | 2.4~3.5 |
| Controller | LCD Wire controller |
| Refrigerant | R410A/R32 |
| Compressor/Type | Mitsubishi / Inverter rotary |
| Compressor quantity | 1 |
| Condenser | Plate heat exchanger |
| Evaporater | Louvered & hydrophilic fin-tubes |
| Evaporater layer | Double |
| Electronic expansion valve | SANHUA EEV |
| Housing | Galvanized steel& powder painting |
| Fan system | Horizontal fan discharge |
| Fan speed | Variable |
| Water flow switch | Built-in |
| Circulation pump | Built-in Energy Class A water pump |
| Water flow (m3/h) | 2.3 |
| Water connection | DN 25 |
| Ingress protection | IPX4 |
| Net dimension (mm) - Outdoor unit | 1110*460*1250 |
| Packing dimension (mm) - Outdoor unit | 1210*530*1385 |
| 1. Unit working temperature : -25℃ to 43℃ 2. Test condition: * Ambient temp: 7℃/6℃, water inlet/outlet: 30℃/35℃ ** Ambient temp: 2℃/1℃, water inlet/outlet: 30℃/35℃ *** Ambient temp: 35℃, water inlet/outlet: 7℃/12℃ **** Ambient temp: 35℃, water inlet/outlet: 18℃/23℃ 3. Hot water supply: the volume of hot water heated from 15℃ to 55℃ at ambient temp 15℃. 4. The above is the basic configuration. Water pump is included in. | |
