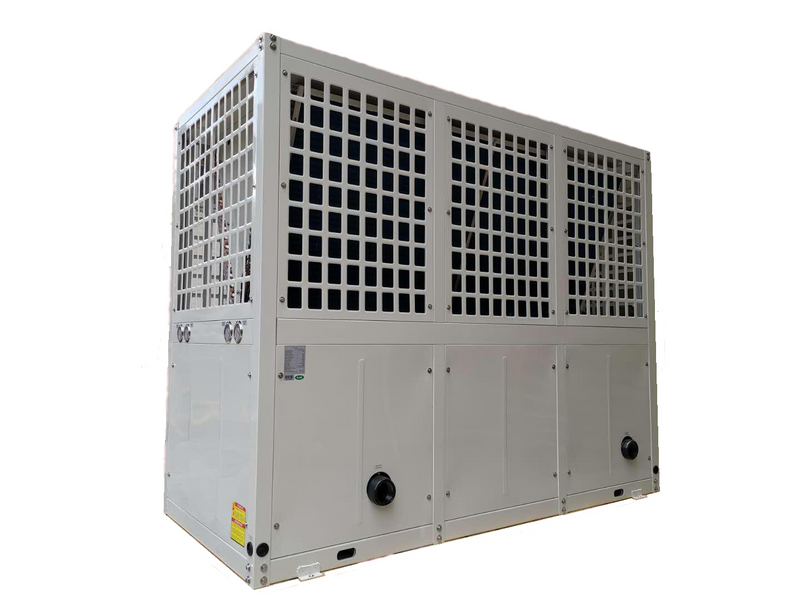

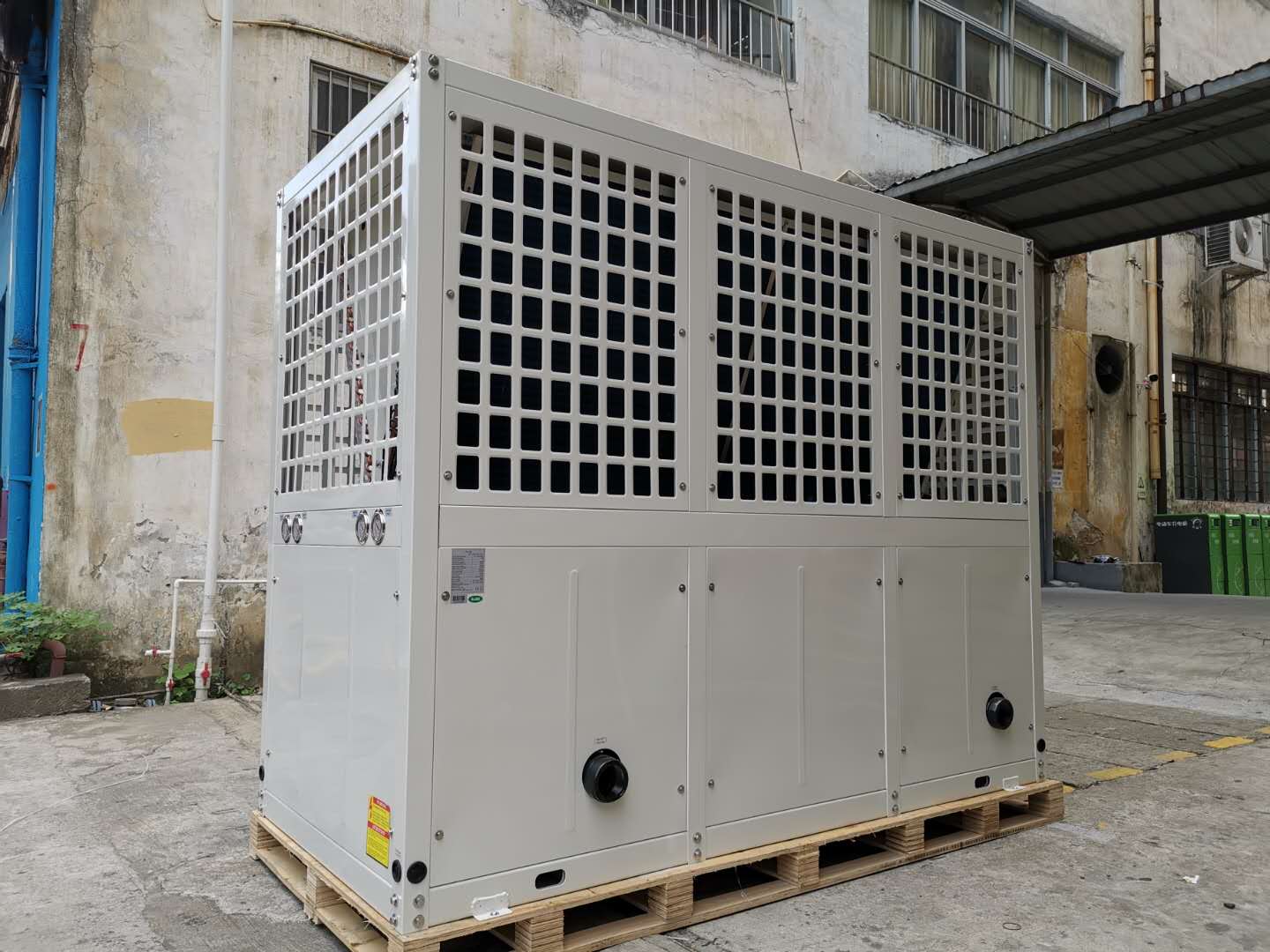

FA-30
folansi
FA-30
| Model | unit | FA-30 | ||
| Rated heating capacity | KW | 113 | ||
| BTU | 395665 | |||
| Hot water supply | T/h | 2.46 | ||
| Average heating input power | KW | 24.6 | ||
| Rated heating input current | A | 38 | ||
| Max outlet water temp | ℃ | 60℃ | ||
| COP | 4.7 | |||
| Power | V/Hz | 380-415V/50HZ | ||
| Nosie | dB(A) | 65 | ||
| Dimension | Width | mm | 2305 | |
| Deepth | mm | 1100 | ||
| Height | mm | 1860 | ||
| Unit weight | KG | 720 | ||
| Throttling type | Electronic expansion valves | |||
| Refrigerant | R410A/R32 | |||
| Working air temp range | – 20℃～45℃ | |||
| Compressor | Type | Scroll Copeland,.hitachi,panasonic | ||
| Security functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | |||
| Air source heat exchanger | Type | Finned heat exchange | ||
| Qty | piece | 4 | ||
| Fan type | Axial big twist Angle fan | |||
| Motor power | W | 550*3 | ||
| Hot water side heat exchange | Type | tube in shell heat exchanger OR Shell tube heat exchanger | ||
| Water flow | m3/H | 18 | ||
| Water pressure down | kPa | 48 | ||
| Pipe size | Inch | 3 | ||
| Water side max working pressure | kPa | 1000 | ||
