FA-30EVI
folansi

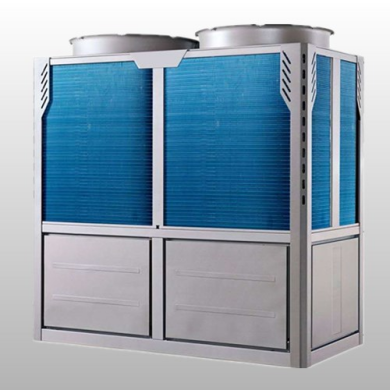

| Picture | |||
| Model | / | FA-30EVI | |
| Operation Air Temp. Range | ºC | -30 ~ 43 | |
| Power Supply | V/Ph/Hz | 380~440 / 3 / 50 | |
| Hot Water Condition | Heating Capacity | KW | 118.0 |
| Air 20ºC/15ºC, | Power Input | KW | 26.5 |
| Water 15ºC to 55 ºC | COP | (W/W) | 4.51 |
| Hot Water | (L/h) | 2536 | |
| Heating Condition | Heating Capacity | KW | 82.0 |
| Air 7ºC/6ºC, | Power Input | KW | 26.12 |
| Water Output 41 ºC | COP | (W/W) | 3.14 |
| Heating Condition | Heating Capacity | KW | 66.3 |
| Air -12ºC/-14ºC, | Power Input | KW | 26.32 |
| Water Output 41 ºC | COP | (W/W) | 2.52 |
| Cooling Condition | Cooling Capacity | KW | 66.7 |
| Air 35ºC, | Power Input | KW | 27.12 |
| Water Output 7 ºC | EER | (W/W) | 2.46 |
| Maximum Power Input | KW | 38.6 | |
| Maximum Current | A | 69.2 | |
| Compressor Brand | / | Copeland | |
| Compressor Type | / | Scroll EVI | |
| Compressor Quantity | / | 2 | |
| Condenser (airside) | / | hydrophilic aluminum fin with copper tube heat exchanger | |
| Evaporator( water side) | / | copper tube in shell heat exchanger | |
| Refrigerant | / | R410A | |
| Fan Quantity | / | 3 | |
| Air Discharge type | / | Vertical | |
| Casing Material | / | Powder Painted Galvanized steel(304 Stainless Steel is optional) | |
| Waterproof Class | / | IPX4 | |
| Electric Shock Proof Grade | / | I | |
| Water Flow Rate | m³/h | 19 | |
| Water Pipe Connection Size | DN | 2 inch | |
| Noise | dB(A) | 70 | |
| Net Dimension | L/W/H | cm | 230/110/208 |
| Packing Dimension | L/W/H | cm | 237/122/223 |
| Net Weight | KG | 680 | |
| Gross Weight | KG | 740 | |
| Remark: The data above is only for reference, designs and specifications might be changed without prior notice. | |||
